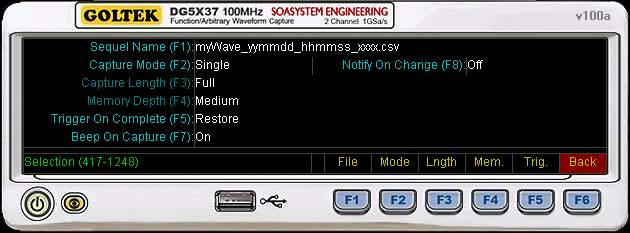

CAPTURE (UTILITY MODE)
file to save captured wave. timestamp will be added to avoid overwriting
Capture Mode: single mode only captured data once. but continuous mode
will keep capturing until you manually press the capture button
Capture Length: whether to capture/save the whole dso memory block, or
use the selection region to crop and save the memory.
short = 600 points, medium = 8K points, long = 1M points
Complete: restore the previous dso state (run or stop), or simply stop the
Beep On Capture: beep after each capture to notify you.
Notify On Change: pop up notification/reminder message when you try to
load/capture a new data into edited existing waveform
BACK TO NORMAL MODE
any comment, improvement
and suggestion, please contact me at email@example.com
well, too sad if you don't have a back button
